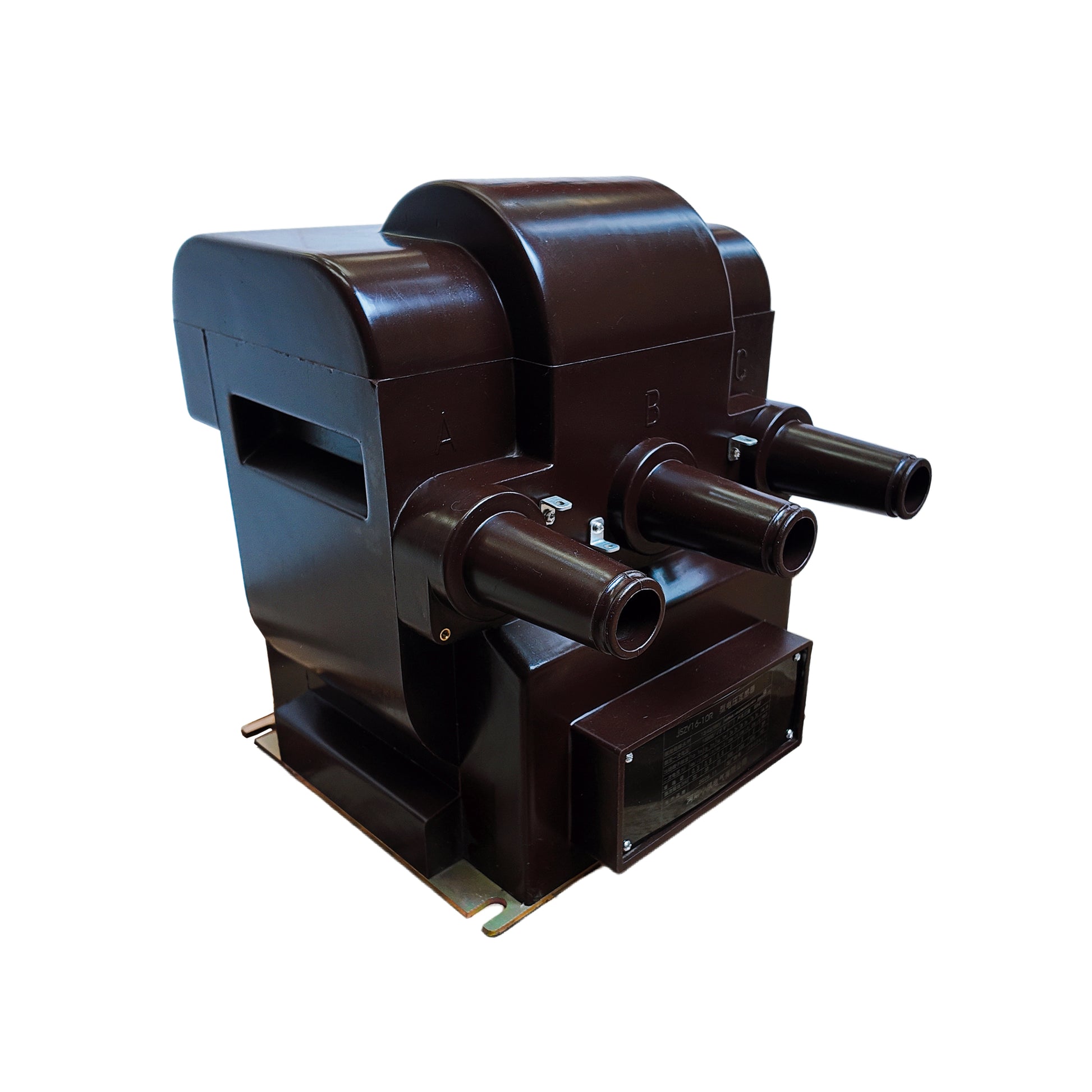

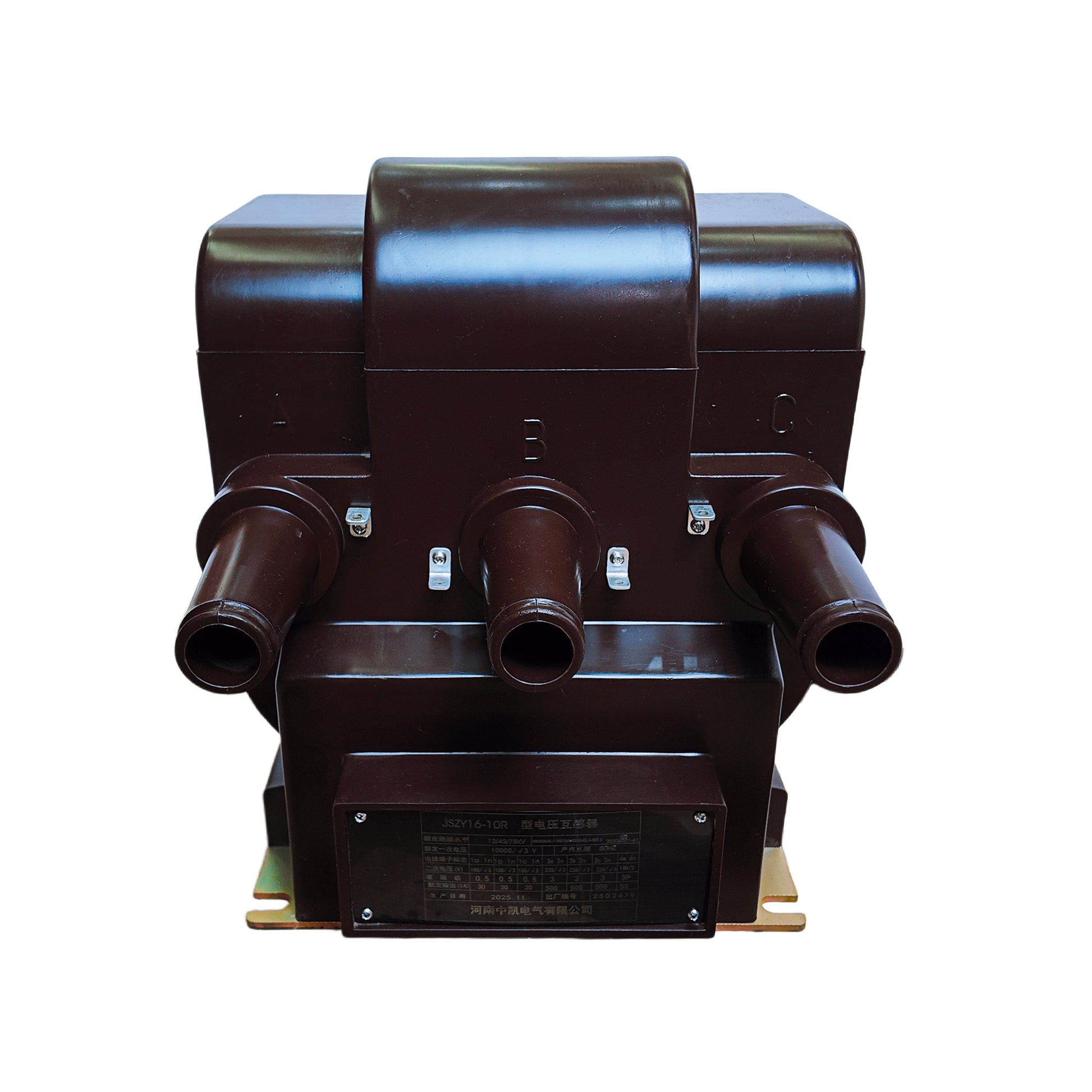

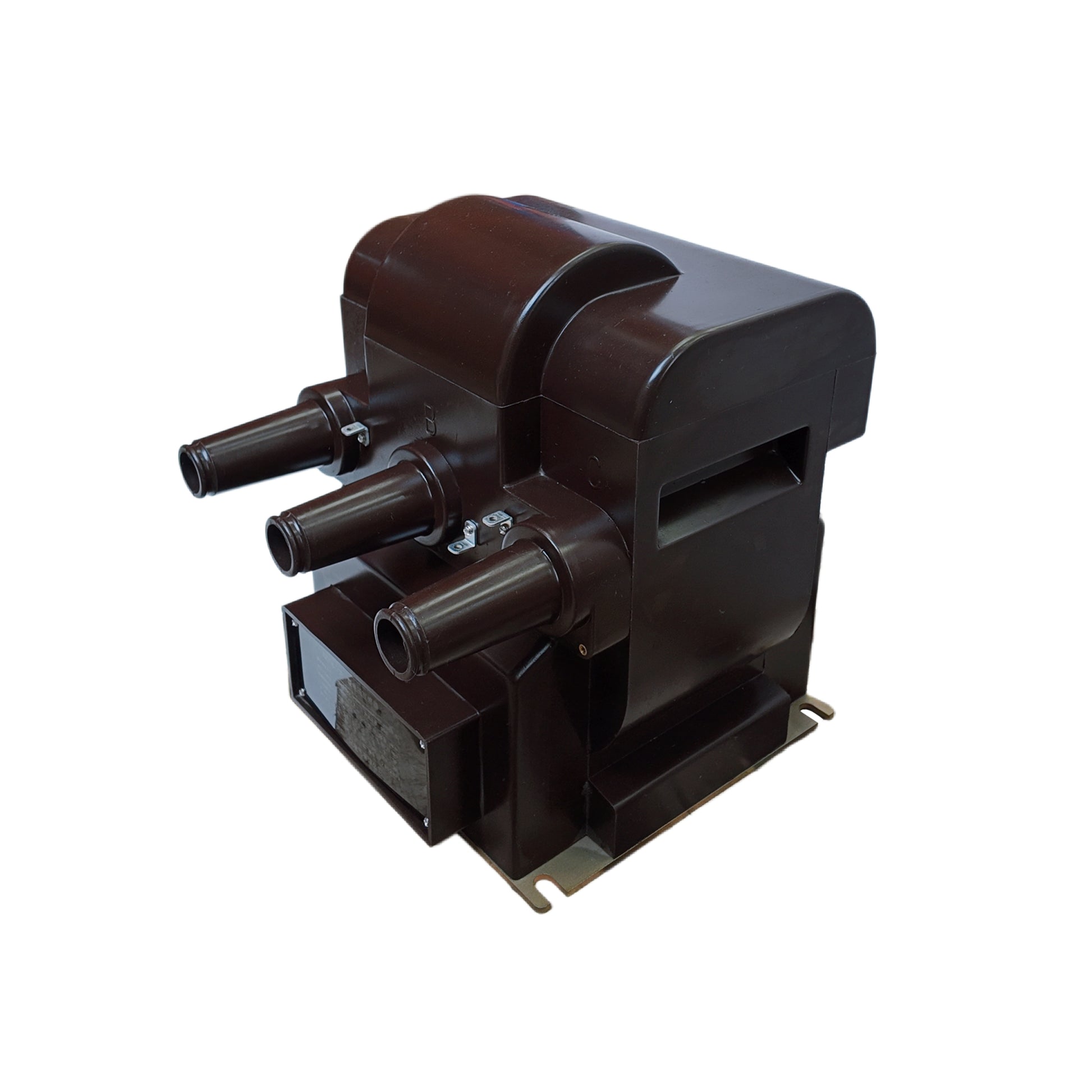

10kV And Below Three-Phase Three-Core Voltage Transformer
This voltage transformer features a fully enclosed structure with vacuum epoxy resin casting. It is an indoor three-phase three-limb voltage transformer, applicable to indoor power systems with rated frequency of 50 Hz and rated voltage up to 10 kV for voltage measurement, electric energy metering and relay protection.
The matched high-voltage fuse is of model XRNP-12, with rated current of 0.2 A, 0.5 A, 1 A and rated breaking current of 50 kA.
